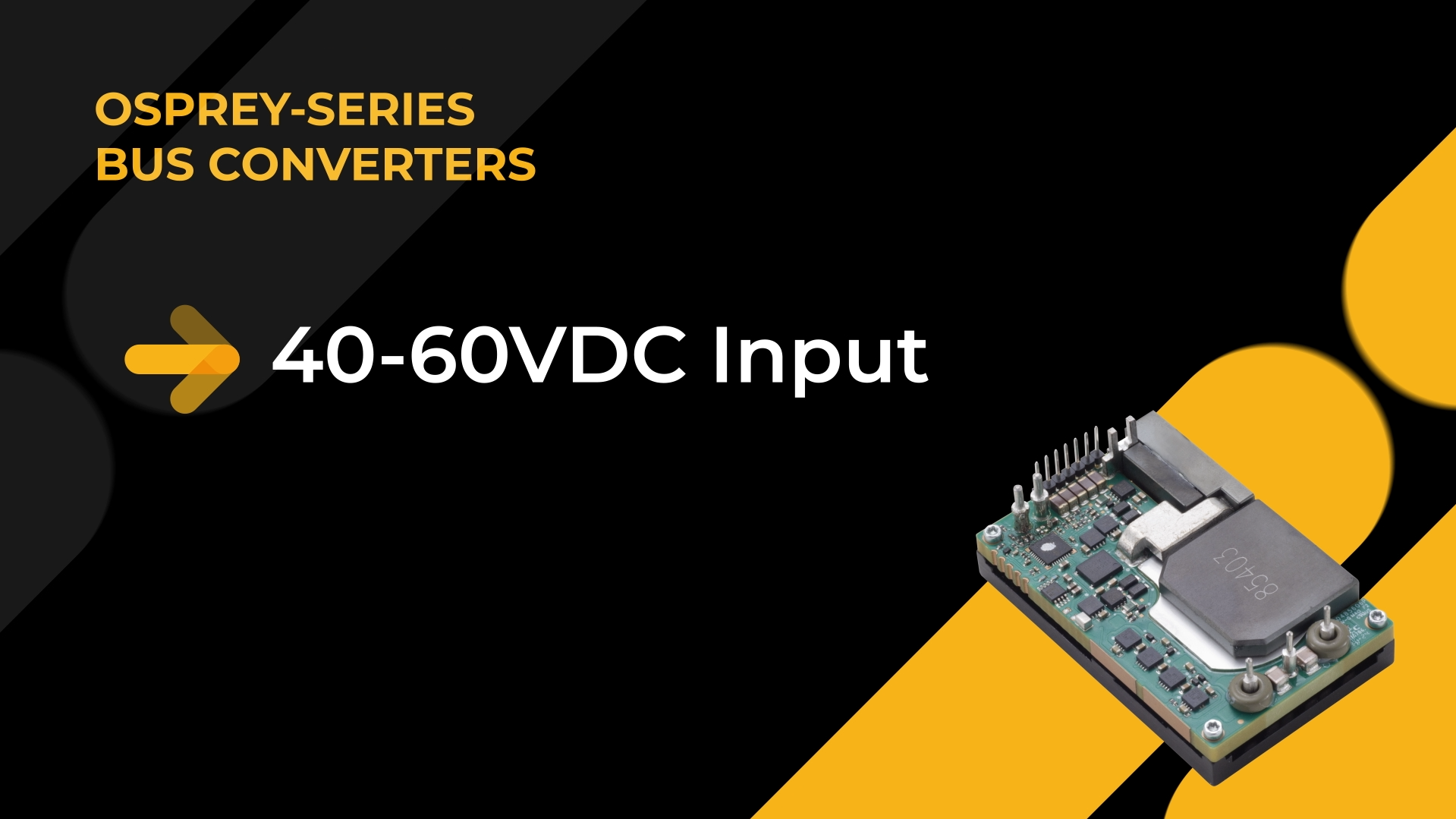

Osprey-series non-isolated DC/DC bus converters offer high power and high efficiency to support 12VDC intermediate bus applications that require tight regulation. The converters feature a wide 40 to 60VDC input voltage range and industry-standard, modified DOSA digital quarter-brick footprints. Available in 2600W, 2000W, 1600W, and 1300W versions, the converters incorporate digital control, synchronous rectification technology, a regulated control topology, and innovative packaging techniques to achieve peak efficiencies up to 98.5%.
| Power Modules | Input Range | Vout | Iout | Power | Peak Efficiency | ECAD Model | Check Inventory | power module wizard |
|---|---|---|---|---|---|---|---|---|
|
QODN217A0B
Documents
| 54V (40-60V) | 12V | 217A | 2600W | 98.5% |
PCB Symbol, Footprint
& 3D Model
| Check stock  (opens in a new window) | Use the Tool (opens in a new window) |
|
QODN167A0B
Documents
| 54V (40-60V) | 12V | 167A | 2000W | 98.5% |
PCB Symbol, Footprint
& 3D Model
| Check stock (opens in a new window) | Use the Tool (opens in a new window) |
|
QODN136A0B
Documents
| 54V (40-60V) | 12V | 136A | 1600W | 98.5% |
PCB Symbol, Footprint
& 3D Model
| Check stock (opens in a new window) | Use the Tool (opens in a new window) |
|
QODN108A0B
Documents
| 54V (40-60V) | 12V | 108A | 1300W | 98.4% |
PCB Symbol, Footprint
& 3D Model
| Check stock (opens in a new window) | Use the Tool (opens in a new window) |
|
QODE167A0B
Documents
| 54V (40-60V) | 12V | 167A | 2000W | 97.6% |
PCB Symbol, Footprint
& 3D Model
| Check stock (opens in a new window) | Use the Tool (opens in a new window) |
|
QODE136A0B
Documents
| 54V (40-60V) | 12V | 136A | 1600W | 97.6% |
PCB Symbol, Footprint
& 3D Model
| Check stock (opens in a new window) | Use the Tool (opens in a new window) |
|
QODE108A0B
Documents
| 54V (40-60V) | 12V | 108A | 1300W | 97.5% |
PCB Symbol, Footprint
& 3D Model
| Check stock (opens in a new window) | Use the Tool (opens in a new window) |
(opens in a new window)

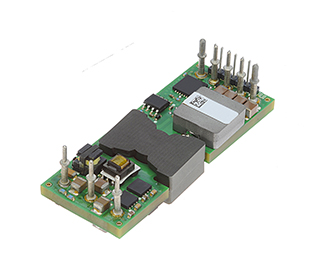

High-Power Barracuda
DC/DC converters with digital control and full-regulation in a DOSA-compliant footprint. Designed to support 9.6 to 12VDC intermediate bus applications and for use in applications requiring a tightly regulated output voltage.
Read More(opens in a new window)
(opens in a new window)

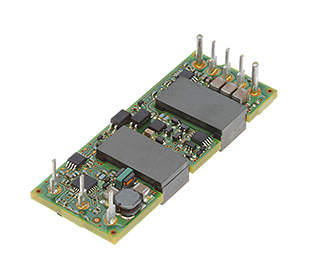

Hammerhead
Cost-effective DC/DC converters with ultra-wide input voltage ranges. designed for temperature conditions of -40C to 85C and for use in medical, military and other industrial applications.
Read More(opens in a new window)
(opens in a new window)

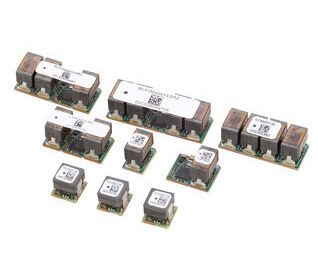

DLynx III
Flexible, non-isolated DC-DC converters that can deliver from 15A to 320A of output current in both stand-alone and master/satellite configurations with power densities of up to 205 A/in2.
Read More(opens in a new window)
(opens in a new window)

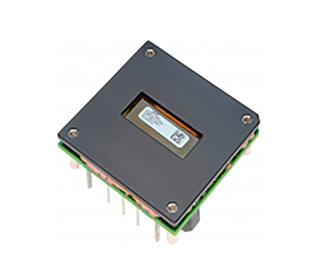

Orca
